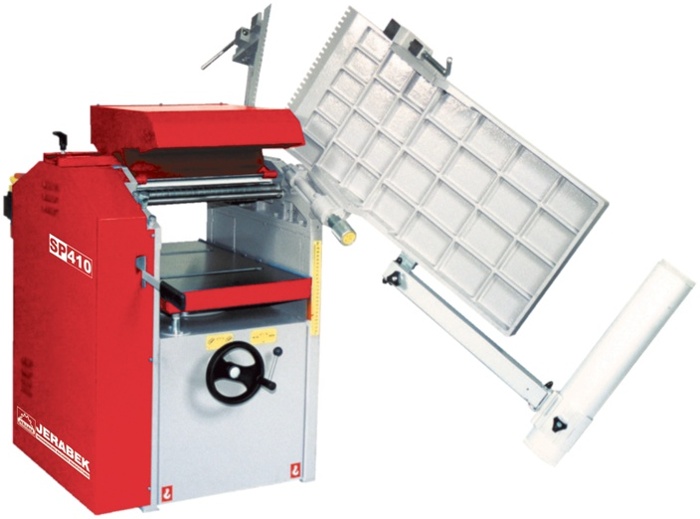

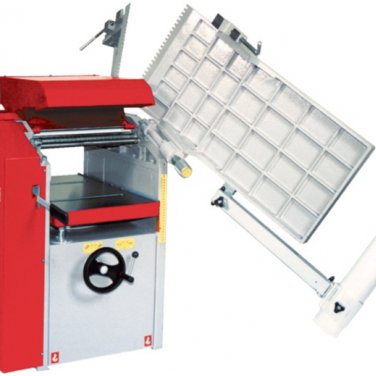

Planer and thicknesser SP410

Home
Planer and thicknessers
Planer and thicknesser SP410

stable construction
cutter block in cast iron
Tilting tables
tilting suction cover of thicknesser
blocking of thicknessing table
mechanical clutch against overloading
thicknessing roller

Offer

Standard version

stable construction
cutter block in cast iron
Tilting tables
tilting suction cover of thicknesser
blocking of thicknessing table
mechanical clutch against overloading
thicknessing roller

Technicial datas

Motor	4 kW
Motor speed	2860 rpm
Cutter block diameter	100 mm
Diameter of feeding rollers	50 mm
Nr. of knives	4
Angle of tilting fence	0 - 45 °
Cutter block speed	4400 ot./min.
Max. planing width	400 - 410 mm
Max. thicknessing width	400 - 410 mm
Max. height of thicknessing	230 mm
Max. chip removal of thicknessing	5 mm
Max. chip removal of planin	4 mm
Feeding speed	8 m/min.
Machine lenght	1800 mm
Machine width	700 mm
Table height	870 mm
Machine height	1200 mm
Table size of planer	1800 x 410 mm
Table size of thicknesserRozměry stolu tloušťkovací frézky	410 x 880 mm
Lenght of planer tables	1800 mm
Suction hood diameter	100 mm
Weight	400 kg
